Using Stratux with EFB Apps

Once your Stratux ADS-B receiver is assembled and configured, the final step is integrating it with a Stratux compatible EFB (Electronic Flight Bag) app such as ForeFlight, FlyQ, or FltPlan Go. These apps connect directly to the Stratux Wi-Fi network and display real-time traffic, weather, GPS, and attitude data.

Supported EFB Applications

Stratux works with most iOS and Android-based EFB apps that support ADS-B In.

  • ForeFlight Mobile (iOS)
  • Seattle Avionics FlyQ (iOS)
  • FltPlan Go (iOS and Android)
  • Avare (Android)
  • Stratux Web UI (browser-based)

These apps automatically detect Stratux data if you are connected to the Wi-Fi network.

Connecting to Stratux from an EFB App

  1. Turn on your Stratux device and wait 10–30 seconds for the Wi-Fi network to appear.
  2. On your tablet or smartphone, go to Wi-Fi settings and connect to the Stratux network.
  3. Open your EFB app. Most will detect Stratux automatically.

If not, go to the EFB app’s settings > devices section and select or manually configure Stratux as the data source.

Traffic and Weather Display

Once connected, your EFB should show traffic and weather overlays similar to a certified ADS-B receiver:

  • Traffic targets will appear relative to your GPS position
  • Weather (METARs, TAFs, radar) will update based on received UAT broadcasts
  • GPS location is supplied by the onboard GPS module

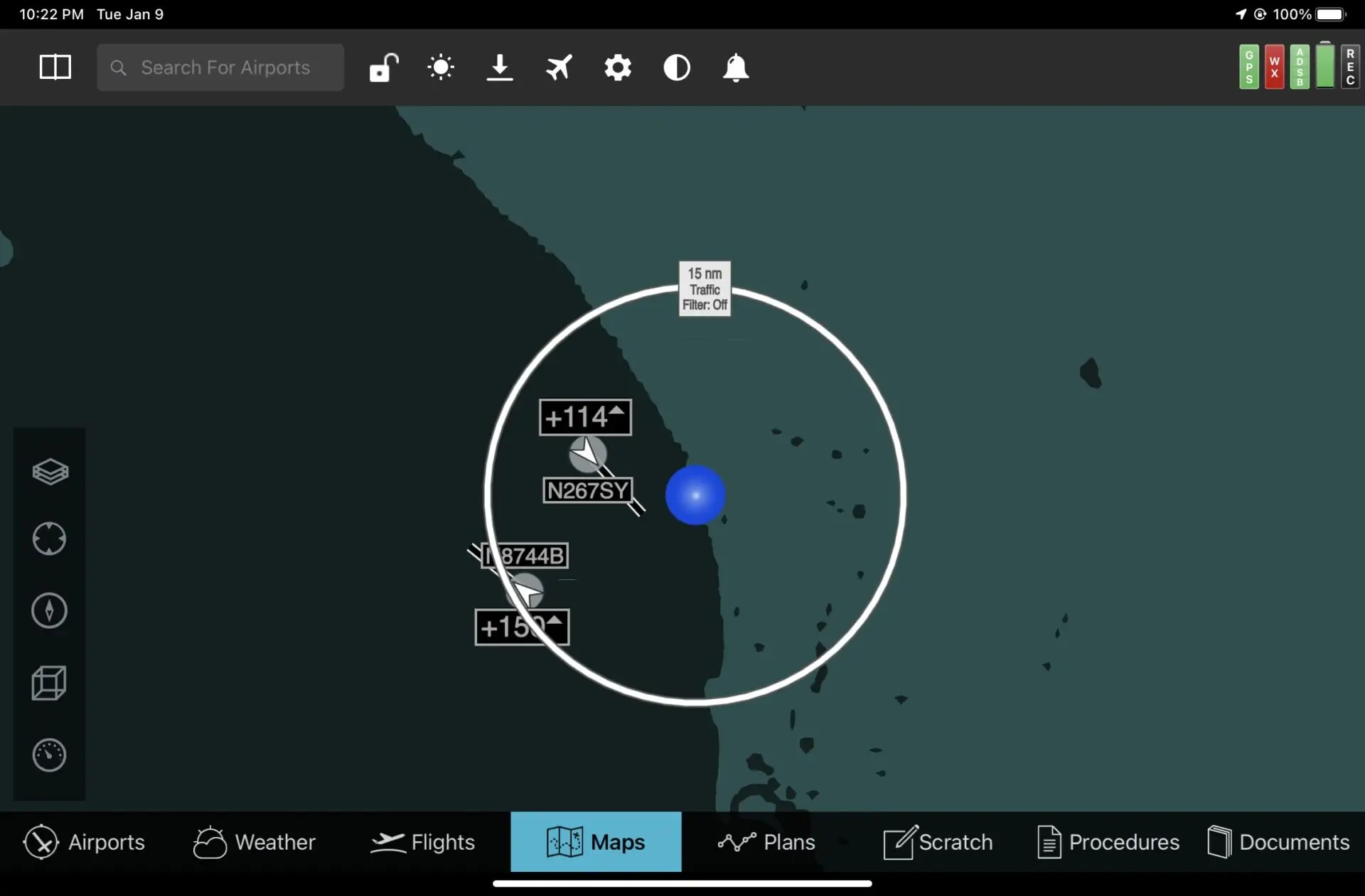

Image showing FlyQ EFB with traffic targets displayed

AHRS and GPS Features

If your Stratux includes an AHRS unit, it can provide basic attitude and heading information:

  • Synthetic attitude indicator in compatible EFBs
  • “Set Level” calibration button aligns the horizon
  • GPS and AHRS overlays are visible in apps like FlyQ and Stratux’s internal web UI

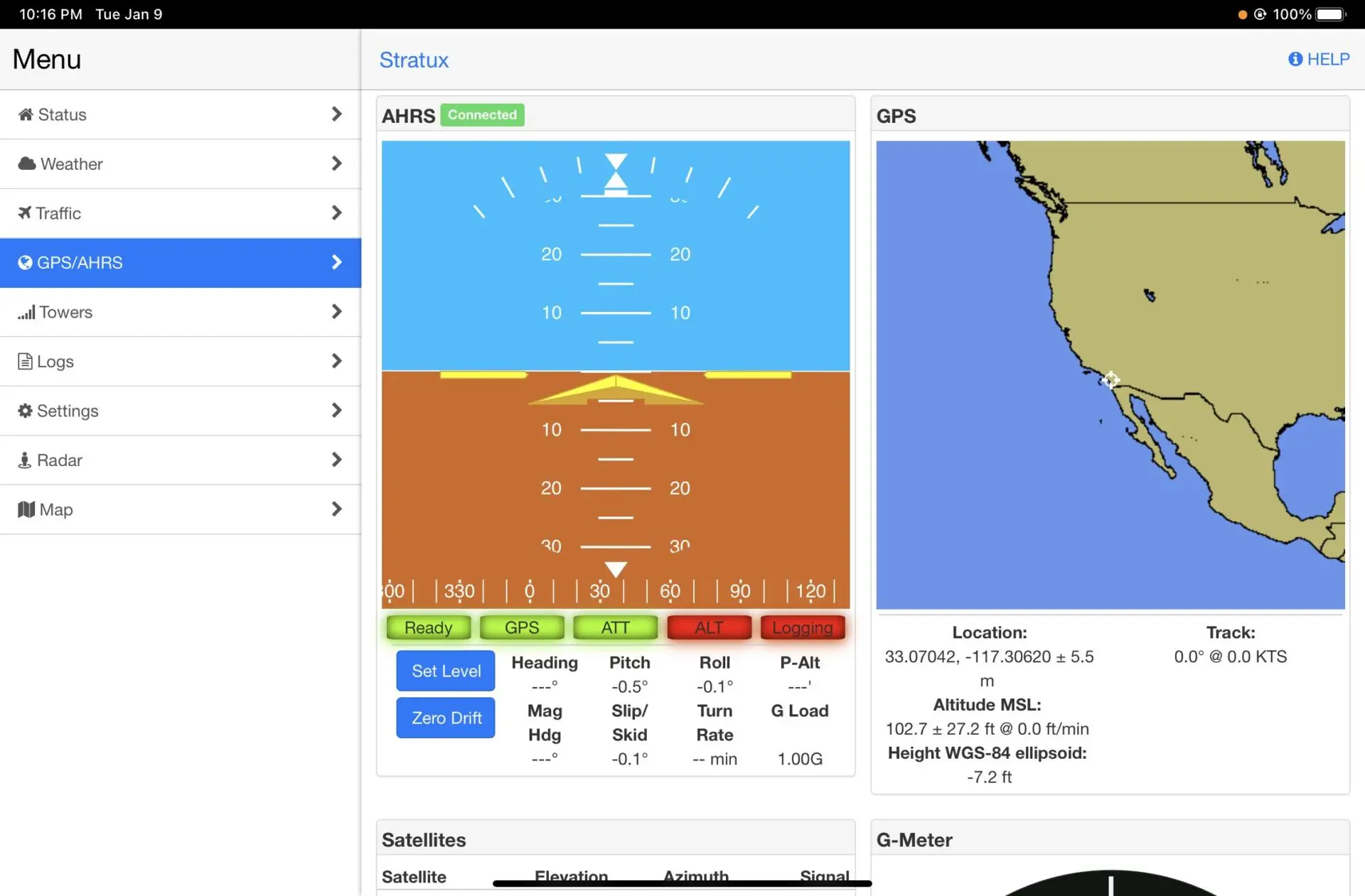

Stratux web interface AHARS and GPS

Common App Integration Issues

  • No data showing? Confirm the app is connected to Stratux Wi-Fi and not using cellular.
  • GPS position not updating? Check GPS lock status on the Stratux Web UI.
  • Traffic not appearing? Make sure you’re receiving 1090ES or UAT data (visible on the status page).

With your EFB connected, your Stratux unit is now fully operational — offering a complete, portable traffic and weather system for your cockpit. Next, let’s look at a few add-ons and features you may want to consider.
